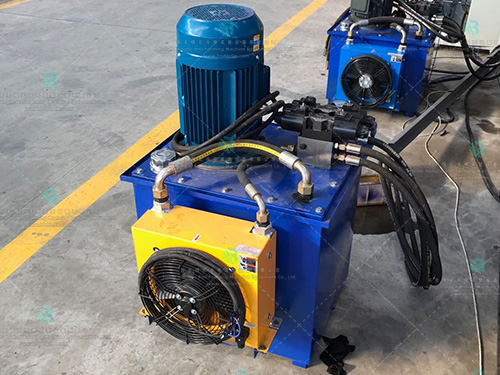

A hydraulic pump station is a device in a hydraulic system that provides hydraulic power. It drives a hydraulic pump through a prime mover (usually an electric motor or other power source), converting mechanical energy into hydraulic oil power. The output medium of a hydraulic pump station is generally hydraulic oil that meets the requirements of the hydraulic system and can provide flow and pressure that meet the system requirements. Hydraulic pump stations are usually equipped with cooling systems, filtration systems, pressure regulation systems, safety protection systems, flow regulation systems, pressure and temperature indicators, valve control, and oil storage tanks, and some are also equipped with energy storage devices.
Working principle of hydraulic pump station
The working principle of hydraulic pump station is based on the hydraulic pump drawing oil from the oil tank and sending it into the hydraulic system in high-pressure form. The motor drives the oil pump to rotate, and the pump absorbs oil from the oil pump and pressurizes it to convert mechanical energy into hydraulic oil pressure energy. Hydraulic oil is regulated in direction, pressure, and flow rate by hydraulic valves through integrated blocks (or valve combinations), and then transmitted through external pipelines to hydraulic cylinders or oil motors of hydraulic machinery, thereby controlling the direction change, force magnitude, and speed of hydraulic machinery, and driving various hydraulic machinery to do work.
Working principle of hydraulic pump station
Components and functions of hydraulic pump station
The hydraulic pump station mainly consists of the following parts:
Hydraulic pump: The core component responsible for drawing oil from the tank and sending it into the hydraulic system.
Hydraulic control valve: The control core is responsible for regulating the pressure, flow rate, and direction of the hydraulic system.
Oil tank: an oil storage container used to store hydraulic oil and provide a place for hydraulic pumps to suck oil.
Cooler: Used to reduce the temperature of hydraulic oil and prevent the oil from deteriorating due to high temperature.
Oil filter: Filter impurities in hydraulic oil, keep the oil clean, and extend the life of the hydraulic system.
Application scenarios of hydraulic pump stations
Hydraulic pump stations are widely used in industries such as construction machinery, mining machinery, metallurgical machinery, and petroleum machinery. They are one-to-one hydraulic stations for hydraulic mud cannons specially designed for the blast furnace ironmaking industry. They have a compact structure, long service life, good working stability, and reliability, and are particularly suitable for long-term use in dynamic loads and dust environments.
Application of hydraulic pump station
Maintenance and optimization suggestions for hydraulic pump stations
In order to confirm the normal operation and extend the service life of the hydraulic pump station, regular inspections, maintenance, and upkeep should be carried out. This includes checking the cleanliness and oil temperature of the hydraulic oil, regularly replacing the hydraulic oil, cleaning the oil tank, and inspecting all hydraulic components for leaks or damage. In addition, the working parameters of the hydraulic pump station should be adjusted according to actual working conditions to optimize performance and energy efficiency.
