Basic Info Model No.:cz purlin making machine Additional Info Productivity:40sets Per Month Place of Origin:China Hebei Supply Ability:40sets Per Month Certificate:CE,ISO9001 Product Description CZ Purlin Making Machine for Construction Structure Our cz purlin machine can make c purlin and z purlin both.It is more cost effective than 2 machines.Also it is very easy to change from c purlin to z purlin.Automatic changing sizes,and punching after forming.Plc control,
Basic Info
Model No.:cz purlin making machine
Additional Info
Productivity:40sets Per Month
Place of Origin:China Hebei
Supply Ability:40sets Per Month
Certificate:CE,ISO9001
Product Description

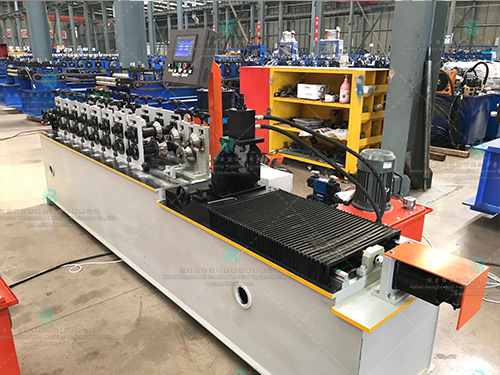

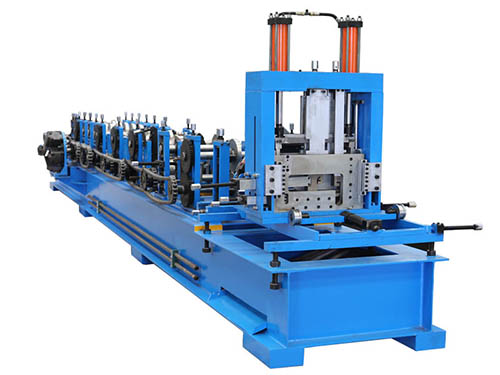

CZ Purlin Making Machine for Construction Structure
Our cz purlin machine can make c purlin and z purlin both.It is more cost effective than 2 machines.Also it is very easy to change from c purlin to z purlin.Automatic changing sizes,and punching after forming.Plc control,easy to operate.It is very easy to convert from z purlin to c purlin,one design with different sizes,it is controlled by PLC,and automatic changing.
cz purlin making machine is used to make c purlin or z purlin for steel structure.Now c and z purlin are widely used in steel structure building,commercial building
10. Supplying components of complete machine
NO. | Description | Quantity (set) | Remark |
1 | 5Tmanual decoiler | 1 | |
2 | Guiding device | 1 | One complete unit as main machine |
3 | Forming system | 1 | |
4 | Transmission system | 1 | |
5 | Hydraulic guillotine&punching | 1 | |
6 | Support table | 2 | |
7 | Hydraulic station | 1 | |
8 | Control box | 1 | |
9 | Spare parts and tools | 1 | As attaching list |
General parameters
No | Item | Parameter | Note |
1 | Forming Speed | Max15 m/min(depend on quantity of punching) | Depend on quantity of punching |
2 | Forming station | Around 18 groups | |
3 | About 22KW | ||
4 | Total Weight | About9700KGS | |
5 | Voltage | 380v,50hz,3p | |
6 | Diameter of shaft | 80mm max shaft | |
7 | Installation Size | 15 * 1.0 M*1.5 |
12. Main parts material
No | Item | Parameter | Note |
1 | Forming Shaft | 40cr steel with grinding process | |
2 | Forming Roller | Gcr15 with hard chrome coating and heat treatment | |
3 | Cutting Blade | Cr12MoV with hard treatment | |
4 | Control System | TOUCHWIN screen,PLC Panasonic | |
5 | Encoder | OMRON | |
6 | Solenoid valve | HUADE beijing | |
7 | Low voltage | SIEMENS | |
8 | Hydraulic parts | China quality brand |
