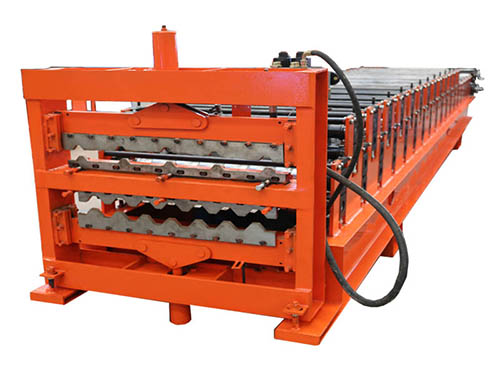

Exterior Cladding Sheet Roll Forming Machine
The cladding sheet forming machine is controlled by PLC.The final product can be cut as per set length controller,and the length is automatically measured by encoder.When final product reached set length,machine will stop to cut the sheet automatically.Finish thhis action,the machine will run again continuously.
Weather board sheet is used for exterior wall cladding.It is a very moeder design for residential house.This design is used a lot in Australia,New zealand,PNG etc.Considering environmental friendly,Now people use steel sheet to replace pvc one or wood one.Our cladding sheet Roll Forming Machine is designed to product weather board sheet.It is composed of Manual Decoiler,material feeding table,main roll forming,and automatic cutting.
Picture show
Specifications
1.PLC computer control
2.no noise,no shake
3.hydraulic system,long operating
4.easy operation
5.maintenance-free
NO. | ITEM | PARAMETER | NOTE | |
1. | Suitable | Type | Pre-painted sheet, | |
Width(mm) | 450mm | |||
Thickness(mm) | 0.4-0.5mm | |||
Yield stress(mm) | G220-G300 | |||
2. | Product | Detail as the attached file | ||
Length | Any length | |||
3. | Power | Type | 220v/380v/3ph/50hz | Motor brand shanghai Lichao |
Main Motor power | 5.5kw | |||
Cutter power | 4kw | |||
4 | Forming speed(m/min) | 10-15m/min | Not include the time of cutting | |
5. | Manual Decoiler (Optional) | Type | Manual | |
Max capacity | 5t | |||
Suitable coil OD(MM) | 1000 | |||
Suitable coil | 508 | |||
6. | Forming stand | 13 | Depend on actual design | |
7. | Thickness of structure | 16mm | ||
8. | Forming shaft diameter(mm) | 70 solid | ||
9. | Type of cutting | Roll formed and length-set cutting | ||
10. | Control system | Panasonic PLC and inverter | ||
11. | Install dimension(depend on the final design) | 8.2m×1.5m×1m | Without panel length | |
12. | Total weight (Approx) | 5.5T | Depend on final design | |
Introducation
.This machine is made up of roll forming machine,molding press,cutting machine,PLC computer control and hydraulic system
.The machine is stable,no noise,no shake
.Controlling by computer,PLC display,operation is easy,running is steady and reliable,endurable,maintenance-free
.cutting machine is characterized by stable driving,easy operation
.hydraulic system use the CDF-10 hydraulic pump,long operating life,no noise
.this machine is applies to roof fortification
Flow chart:
Decoilling the sheet–sheet guilding–film covering–roll forming–measure length–cutting the panel–panel to the supporter
Machine Feature:
1.Precise forming
2.High-solid forming stand guarantees the goods and uniform high quality of final productd
3.The operation automatically minimizes the tolerance of cutting length
Products Feature:
1.A stylish and attractive design,giving the apperance of a traditional roof tile.
2.Resistant to frost,heat,hail and gales;90%waterproof,due to the lateral run-off channel on each sheet for several models.
3.The raw material can be in different color,with elegant and noble looking.It is widely used as the garden like factory,hotel,exhibition,villa,civil construction etc.
