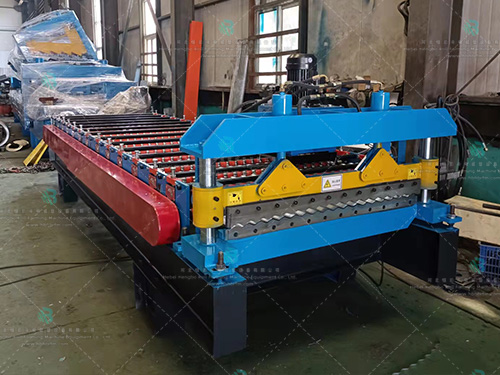

Working principle of 1105 tile press
The 1105 tile press usually refers to a tile press mechanical equipment that uses a hydraulic system for operation.
Generally speaking, the working principle of a tile press involves the following key steps:
Roller forming part: This part is driven by a motor and drives each roller to rotate through a chain, used to feed metal sheets or other materials into the forming stage.
Pressing part: Hydraulic cylinders play a role in this part, driving the mold to move up and down, pressing the material into a specific shape, such as a glazed tile shape.
Cutting blade part: Another set of hydraulic cylinders controls the up and down movement of the cutting tool, which is used to accurately cut the formed tiles.
Control system: Modern tile press machines are equipped with automatic control systems that allow operators to set various parameters such as pressure, speed, and processing time to confirm product consistency and quality.
Lubrication system: In order to protect the smooth operation of the machine and extend its service life, a lubrication pump will be installed inside the tile press to deliver lubricating oil to various friction moving parts through oil pipes.
During the operation, the raw materials are first pre processed through the roller forming section, then pressed into the desired shape through the pressing section, and then cut through the cutting blade section. The entire process is monitored and regulated by the control system to adapt to different production needs
